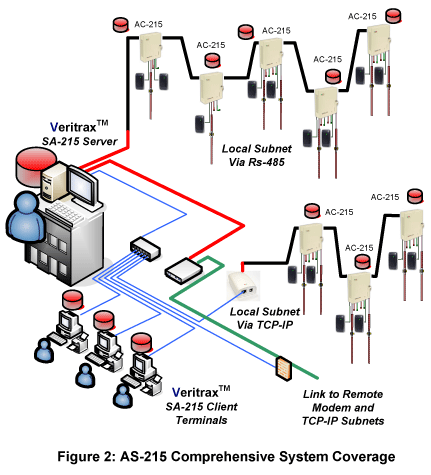

 Rosslare’s Veritrax™, is a networked access control platform, consisting of hardware, PC Software, Keypads & Readers, personal ID card technology. Veritrax™ includes powerful system software for the PC that functions on an enterprise scale. PC system management software (AS-215) which operates with Client/ Server architecture, allowing access to the system from multiple terminals within a local network. Veritrax™ supports multiple networks of door controllers (AS-215), which are connected in either 24-Hours ON-Line, or Periodic Connected OFF-Line to a networked PC. (See Figure 1.) Veritrax™ allows the flexibility of connecting multiple door networks across several communications platforms; RS- 485, Ethernet TCP/IP LAN, PSTN Modem. |
 |
The AS-215 is a self contained Client/Server application that is ideal and economical solution for managing the VeritraxTM access control system. AS-215 was developed using the latest 32-Bit software architecture, with a variety of drivers for communications including TCP/IP, RS-232, and MODEM. By selecting any Microsoft OS (Operating System) PC on a LAN (Local Area Network) to be the “SERVER”, and connecting it to RS232 Local Network, Modem and LAN, that PC will function as the control and administration center for the system. By installing the AS-215 as a “CLIENT” to other Microsoft OS PC on the LAN, the enterprise users, and administrators can use remote terminals to configure, and control the system on a real time basis..
When you need a diverse installation, VeritraxTM, lets you plan and install in style. Each AS-215 network supports both MODEM, TCP-IP and RS-232 connections on the “SERVER” PC, which can accommodate communications with multiple Subnet of access controllers. This allows you to connect to local and remote subnets, to configure, up-download data and receive Alarm Events. The AS-215 offers a powerful set of features, including intelligent addressing and configuration of all the parameters. Once a link is programmed, locally or remote the system automatically remembers the connection. |
|
 |
|
| OPERATING PLATFORM: | |
| Modern Development Platform: | Made with the promising 32-Bit, Interconnected Microsoft Dot. Net, Integrated Developers Suite. |
| Microsoft Windows Compatible: | YES, developed for PCs with Windows XP, and compatible with Windows 98/ Me and NT/2000 operating systems. |
| Software Security Protection: | Hardware Lock, USB Hasp Key (Necessary for systems with over 8 ACU control panels) |
| Integrated demo version: | YES |
| Multiple language support: | Comes with several integral languages, and ability to add more. |
| Advanced alarm handler: | Requires active user confirmation of alarms. |
| GENERAL FEATURES DATA: | |
| On-Line System Operation: | See and Administer Real Time Action, with Sub-Networks. |
| Off-Line System Operation: | Operator may browse, modify, issue reports while off line, which will be updated to the Door Subnet upon connection. |
| Standard User Capacity: | 5,000 Registered Users With Rights + 20,000 Registered No Rights Users. |
| Maximum # of Doors Per Network: | 510 Doors (255 Panels) |
| Maximum # of Network: | Total # of networks: 8 |
| Supported Readers: | Up to 64 Readers per System. |
| Individual Rights By Access Point: | YES, all users access all readers. |
| All Users All Access Points: | YES |
| Individual Time Zones: | YES, Reports, Modem Connect, etc. |
| Access Groups: | Up to 128 |
| Access Time Zones: | Up to 64 |
| Reader In and Out Register: | YES |
| Supports Multiple Reader Modes: | YES, 4-Modes Supported; PIN Only, Card or PIN, Card+PIN, and Card Enrollment. |
| Site Code Access Support: | YES |
| # Of PC Software System Operators: | Unlimited |
| System Operator Privilleges: | 3-Levels |
| System Operator Log-On: | Individual user name and password |
| On the fly Log-Off and Log-On: | YES, users log-out / in without quitting. |
| Enrolment Mode Reader Support: | YES, any reader can be used to enroll. |
| Automatic National Holidays Entry: | YES, supports Database of Intl. Holidays, which can be added automatically to the Holiday List and Edited. |
| PC Software System Alarms: | YES, supports Panel Tamper, Ajar Warning, Reader Tamper, Door Forced, Anti-Passback, and General Input alarms. |
| Local Audiable Alarm: | Alarms may activate a siren sound in built in local sounder |
| Output Activation: | YES, 4-Outputs, 3-Options; Timer, Toggle, Follow Input. Suitable for Doors, Turnstyles Barriers, Gates, Automatic Blinds, HV-AC Control, Lighting Control, Equipment or Host Alarm Panel Control… etc. |
| Output Schedule Activation: | YES, according to any Time Zone |
| Advanced event log book: | YES, Panels, access, alarms, system events, with multiple sorting options, and events highlight by type and priorities. |
| Automatic panels detection: | YES, automatically finds connected ACU controllers on a subnet. |
| Manual doors activation: | YES, the PC can control connected doors. |
| Manual time setting: | YES |
| Manual outputs activation: | YES |
| Bypassing reader mode manually: | YES |
| Updating panel firmware from PC: | YES |
| Hard and Soft Anti passback: | YES |
| Anti passback zones: | Up to 128 |
| Advanced cards and users handing: | YES |
| Limited cards usage: | YES |
| DATABASE FEATURES: | |
| Database Format (DB): | Microsoft Access 97 |
| Embedded PDF files of the Manuals: | YES |
| Database Backup Now: | YES |
| Database Import & Export: | YES, multiple backup options; DB Export Config. Only. DB Export Config. & Even. DB Import Config. Only. DB Import Config & Event. |
| Database Retention Period: | YES, timed |
| Clear Current Database: | YES, Manual |
| Database File Password Protection: | YES, Undisclosed Password |
| Database File Auto Naming: | YES |
| Database Auto Backup: | YES |
| Data Available to other Programs | YES |
| REMOTE ACU CONNECT FEATURES: | |
| REMOTE ACU CONNECT FEATURES: | YES |
| TCP/IP Connected Sub Net of ACU's: | YES |
| Remote TCP/IP Module Configuration: | YES, integrated in software |
| REPORTS MODULES: | |
| Time and Attendance Reporting User Access Reporting All Alarms Reporting Custom Reports Generation and Recreation Multiple Site Processing Reports Format: Multiple reports style options Export data in: Excel, text and ASCII formats Transmitting transactions via serial port |
|
| Custom User Fields Definition: | YES |
| Reports Title LOGO and Header Def.: | YES |
| Instant Reports: | YES, screen reports of events. |
| Printed Reports: | YES, from entire event History. |
|
|||
